BD FASCSAriatm Item #1204 |
|

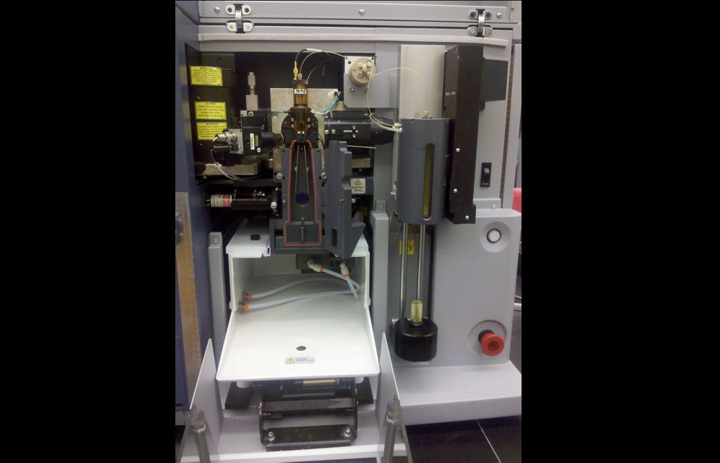

BD FACSAriatm: Rebuilt 3-laser, 9-color sorter with FACSDivatm software, dual flat screen displays, automated cell deposition unit (ACDU), color printer, stream viewing optics, temperature control, aerosol management option (AMO), 2-way/4-way sorting, pressurized fluidics cart, 70 and 100 micron nozzles. |
| |
|

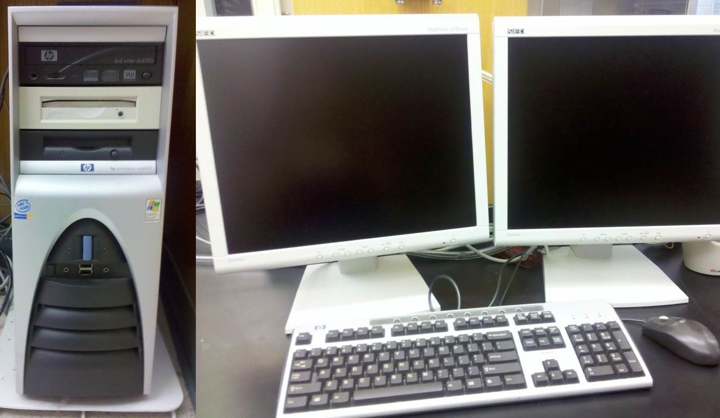

| Workstation: HP CPU with FACSDivatm software, dual monitors, keyboard and color printer. |
| Lasers: Coherent sapphire solid state 488 nm (13-20mW); JDS Uniphase HeNe air cooled laser-633 nm (10-20mW) and iFLEX-2000 405 nm 50mW. |

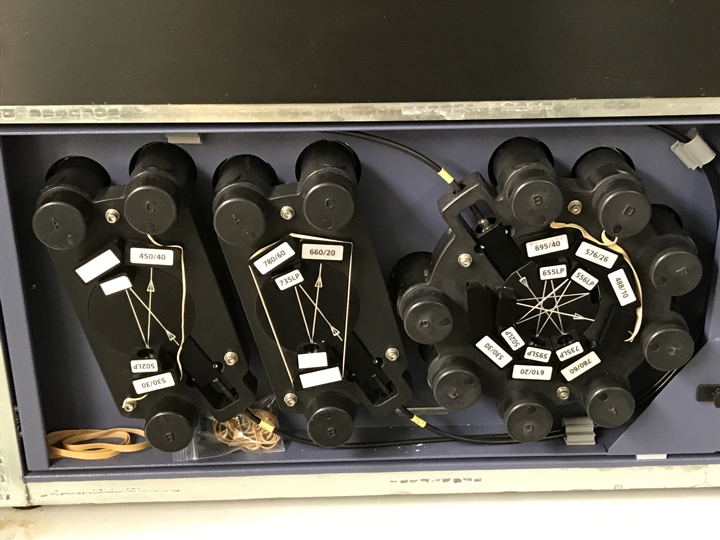

| Detectors: Octagon with 6 PMTs including side scatter (488-nm blue laser); Trigon containing 2 PMTs (633-nm red laser); Trigon containing 2 PMTs . |
| (405-nm violet). |
| Coefficient of variation (CV): 1.5% for DNA stained with PI and 3.5% with Hoechst. |
| Nozzles:70 and 100 micron. |
| Sorting modes: Four-way 1-ml collection tube holder; four-way 12x75mm collection tube holder; two-way 12x75mm collection tube holder:Two-way 15-ml collection tube holder; two-way 15-ml collection tube holder. |
| Optics: Fixed laser alignment to gel-coupled cuvette flow cell. Emission lines transmitted through fiber optics to octagon- and trigon-shaped collection devices. 7 fluorescent PMTs, 1 SSC PMT, 1 FSC diode. |
| Purity and yield: At 70 psi and 90 kHz with an average threshold rate of 25,000 events per second for a four-way sort results in a purity of >98% and a yield >80% of Poisson's expected yield. |
| Maximum acquisition rate: 70,000 events/sec. |
| ACDU: Allows for slide and plate sorting into 6, 24, 48, 96, and 384 plates. |

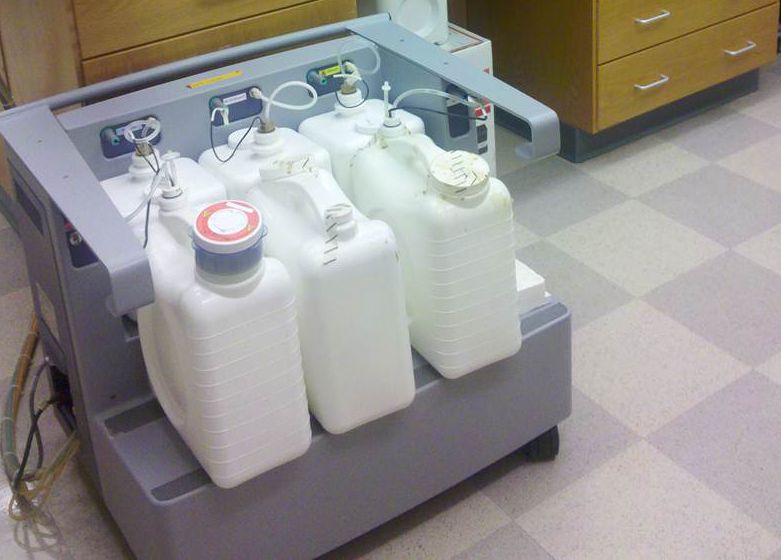

| Fluidics System: Transfers sheath fluid from fluidics cart into a plenum reservoir which prevents pressure variations. The fluidics cart holds four 10-L containers, two sheath and two waste, plus three 5-L auxiliary cleaning fluid containers.. |
| Power: 100/115/230 VAC, 50/60 Hz, 1500 watts. |
| Sensor module dimensions/weight: 48" w x 28" d x 28" h / 400 lbs. |
| Fluidics cart dimensions/weight: 32" w x 26" d x 26" h / 180 lbs. |
| Manufacture date: 2003 |
| |
|
Laser and other modifications that better meet the buyer's requirements can be quoted separately. Please inquire. |
| |
|
Refurbishment confirms that the FACSAria meets all original BD specifications. We perform instrument decontamination and flow cell cleaning procedures. Provide any required restoration of exterior and interior components. Replace filters, fluidics tubing and connectors as required. Replace any defective or worn components. Clean and inspect all tanks in fluidics cart. Set sample pressure to specifications. Confirm all lasers meet specified wattage. Adjust sample flow rates for correct settings. Clean and align optics. Confirm sorting purity and recovery within BD specs. Confirm overall instrument performance and optimum CVs using CST and calibration beads. Print all results to be included with shipment and/or faxed to buyer for approval.
|
| |
|
| Installation by a qualified service representative quoted separately. The price will include all travel expenses and labor required to confirm proper operation at the customer's facility utilizing standard calibration procedures. Any additional time required to correct malfunctions shall be included in the quoted installation fee. |
| |
|
| Instrument and/or applications training by a qualified representative are available for an additional fee. The quoted price includes travel and perdiem expenses when training is performed during an installation visit. Otherwise additional reimbursement for travel and perdiem expenses may be required. |
| |
|
| Custom warranty or service contracts can be quoted separately. All components are covered unless failure is due to operator negligence. In addition, we offer unlimited telephone support for all of the products sold through Spectron Corporation regardless of warranty. |
| |
|
| Shipping costs will be quoted separately. If the purchaser becomes the shipping agent for one of the products located in the State of Washington they could be subject to paying Washington State sales tax unless exempt. No such obligation exists if Spectron Corporation is the designated shipper to destinations outside the State of Washington. This equipment shall be packed in a sturdy double-walled box surrounded inside by 2" foam sheets on all sides. All components shall be individually protected within the same container. The box will be taped, strapped and attached to a pallet with additional strapping. Shipping will be arranged through a qualified airfreight carrier with full insurance. |
| |
|
| Most established institutions will be approved for net-30 terms or other payment plans. Leasing or rental programs may also be available for qualified buyers with various options for an eventual purchase. Washington State customers or others arranging shipment or picking up products themselves may be subject to Washington State sales tax unless exempt. Spectron Corporation will inform prospective buyers of any such circumstance that could result in a tax liability. Otherwise, buyers would only be subject to applicable use taxes that they might be required to pay directly to their respective state. |
| |
|
| Spectron Corporation would appreciate the opportunity to bid on a service contract covering our products as well as other flow cytometers located at your facility. Please inquire into any modifications to the listed products that would better suit your requirements. We strive for complete satisfaction. |
| |
