BD FACSCanto IItm Item #1902 |
|
BD FACSCanto II serial number V96100324 May 2007: Rebuilt 3-laser, 8-color flow cytometer with HP Z220 computer, DiVa 8 software, dual flat screen displays and color printer. Optional loader and configurations available. |
| |
|

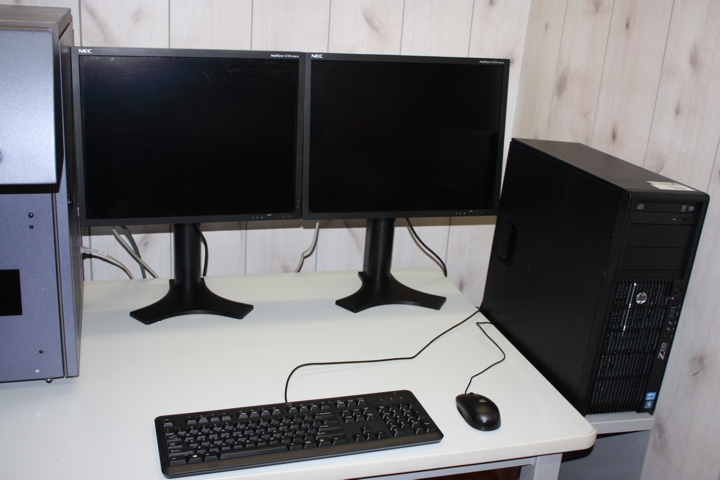

Workstation: HP Z220 computer with DiVa 8 software, dual 21" flat screen displays and color ink-jet printer. DiVa 8 software provides high-performance acquisition and analysis tools for plotting, gating, statistical analysis, and reporting. Can acquire up to 10 parameters and analyze 8 fluorochromes. |

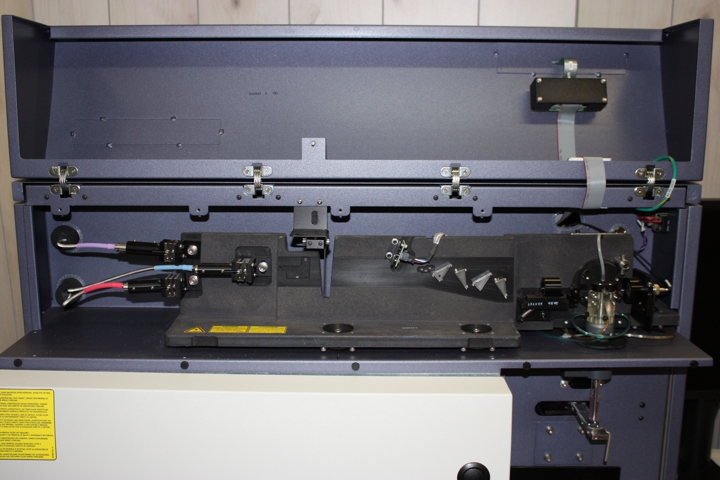

| Lasers: 20mw 488nm sapphire, 50mw 405nm OBIS and 17mw 633nm HeNe lasers spatially
separated for high sensitivity, minimal compensation, and maximum flexibility in fluorochrome selection. |
| Fluorescence Threshold Sensitivity: FITC <100 MESF |
| Coefficient of variation (CV): <3% full peak for propidium iodide–stained chicken erythrocyte nuclei. |
| Compensation: No limit to inter- and intra-beam compensation |
| Maximum particle size: recommended 50 microns. |
| Sample Acquisition rate: 10,000 events/sec. |
| Sample flow rates:Electronically controlled rates (nominally 10,60,120 microliters/min.) |
| Power: 120/230 VAC +/- 10%,
50/60 Hz +/-2 Hz. Current: 5 amps at 120V maximum |
| Sensor module dimensions/weight: 36"w x 24"d x 25"h (49" high with cover open)/ 320 lbs. |

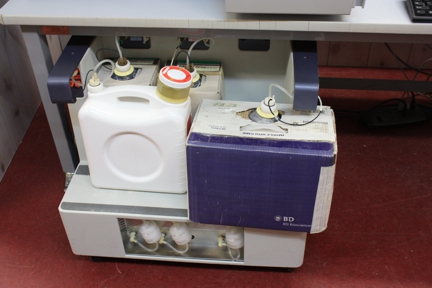

| Wetcart dimensions/weight: 31"w x 24"d x 25"h/ 112 lbs. |
| Manufacture date: May 2007 |
|
Alternate choice of lasers (up to 3) and custom configuration quoted separately. Add $5K with AutoLoader. Deduct $6K for DiVa 6 software.
|
| |
|
Performed instrument decontamination and cleaning procedures for flow cell and all optical components. All panels are restored to like-new appearance. Replaced particulate filters, fluidics tubing and connectors as required. Cleaned and inspected all wetcart components. Set sample pressure to specifications. Confirmed laser output within factory specifications. Adjusted sample flow rates for correct settings. Aligned optics for optimum CVs, laser area scaling factor verification and time delay using calibration and CS&T beads. Confirmed that all workstation and instrument functions meet original factory specifications. All final reports will be saved on the computer and provided to customer for approval prior to shipment. |
| |
|
| Installation by a qualified service representative quoted separately. The price will include all travel expenses and labor required to confirm proper operation at the customer's facility utilizing standard calibration procedures. Any additional time required to correct malfunctions shall be included in the quoted installation fee. |
| |
|
| Instrument and/or applications training by a qualified representative are available for an additional fee. The quoted price includes travel and perdiem expenses when training is performed during an installation visit. Otherwise additional reimbursement for travel and perdiem expenses may be required. |
| |
|
All sales are subject to a 30-day on-site approval period. Return shipping charges shall be paid by Spectron for U.S. customers. Additional warranty or service contracts can be quoted separately. In addition, we offer free telephone or email service support for all products sold. |
| |
|
| Shipping costs will be quoted separately. If the purchaser becomes the shipping agent for one of the products located in the State of Washington they could be subject to paying Washington State sales tax unless exempt. No such obligation exists if Spectron Corporation is the designated shipper to destinations outside the State of Washington. This equipment shall be packed in a sturdy double-walled box surrounded inside by 2" foam sheets on all sides. All components shall be individually protected within the same container. The box will be taped, strapped and attached to a pallet with additional strapping. Shipping will be arranged through a qualified airfreight carrier with full insurance. |
| |
|
| Most established institutions will be approved for net-30 terms or other payment plans. Leasing or rental programs may also be available for qualified buyers with various options for an eventual purchase. Washington State customers or others arranging shipment or picking up products themselves may be subject to Washington State sales tax unless exempt. Spectron Corporation will inform prospective buyers of any such circumstance that could result in a tax liability. Otherwise, buyers would only be subject to applicable use taxes that they might be required to pay directly to their respective state. |
| |
|
| Spectron Corporation would appreciate the opportunity to bid on a service contract covering our products as well as other flow cytometers located at your facility. Please inquire into any modifications to the listed products that would better suit your requirements. We strive for complete satisfaction. |
| |
