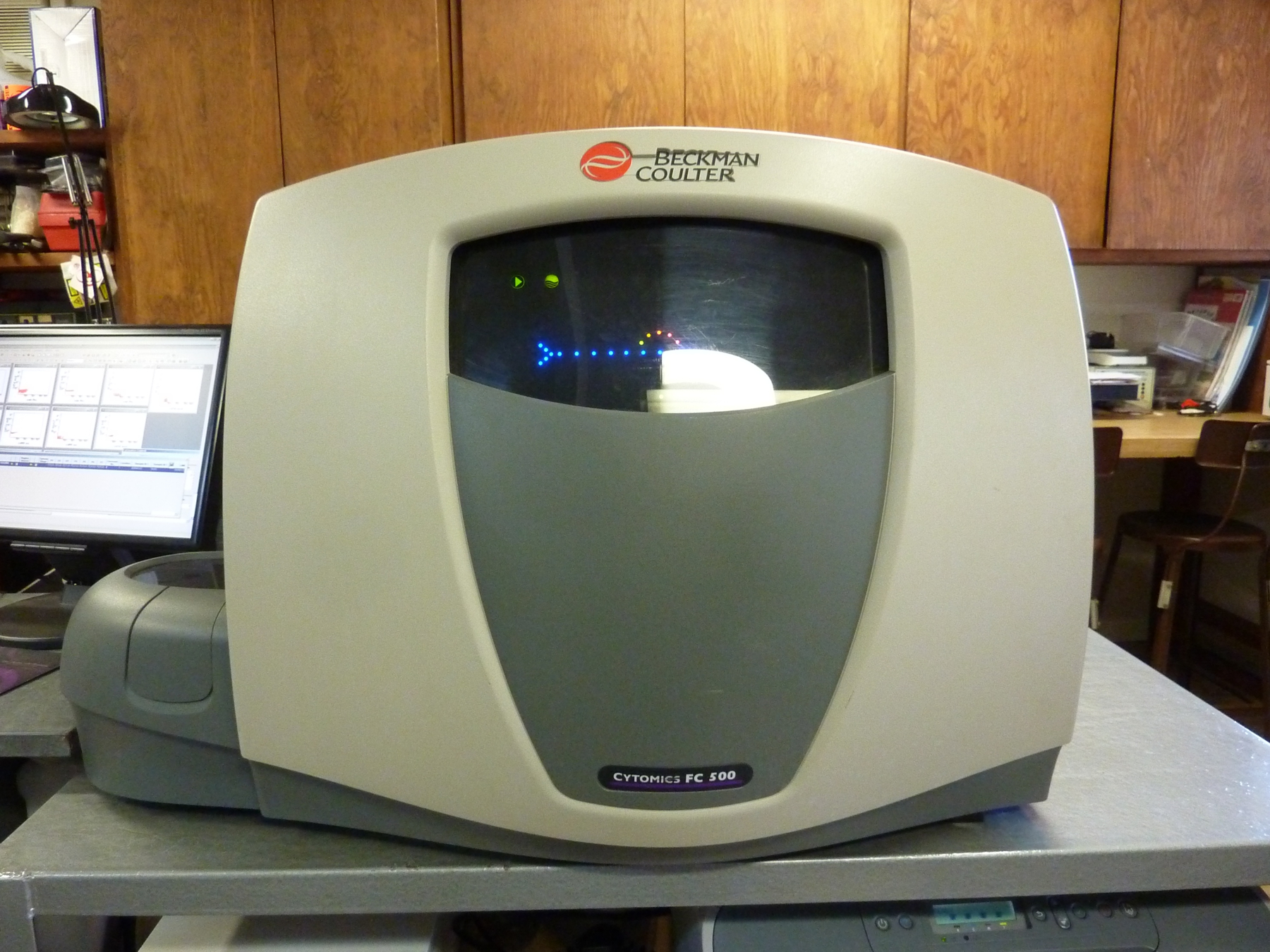

Beckman-Coulter Cytomicstm MCL FC 500 Item #4402
|
|
Single laser, 5-color Beckman-Coulter FC 500 MCL Cytomics flow cytometer with CXP software. |
| |
|

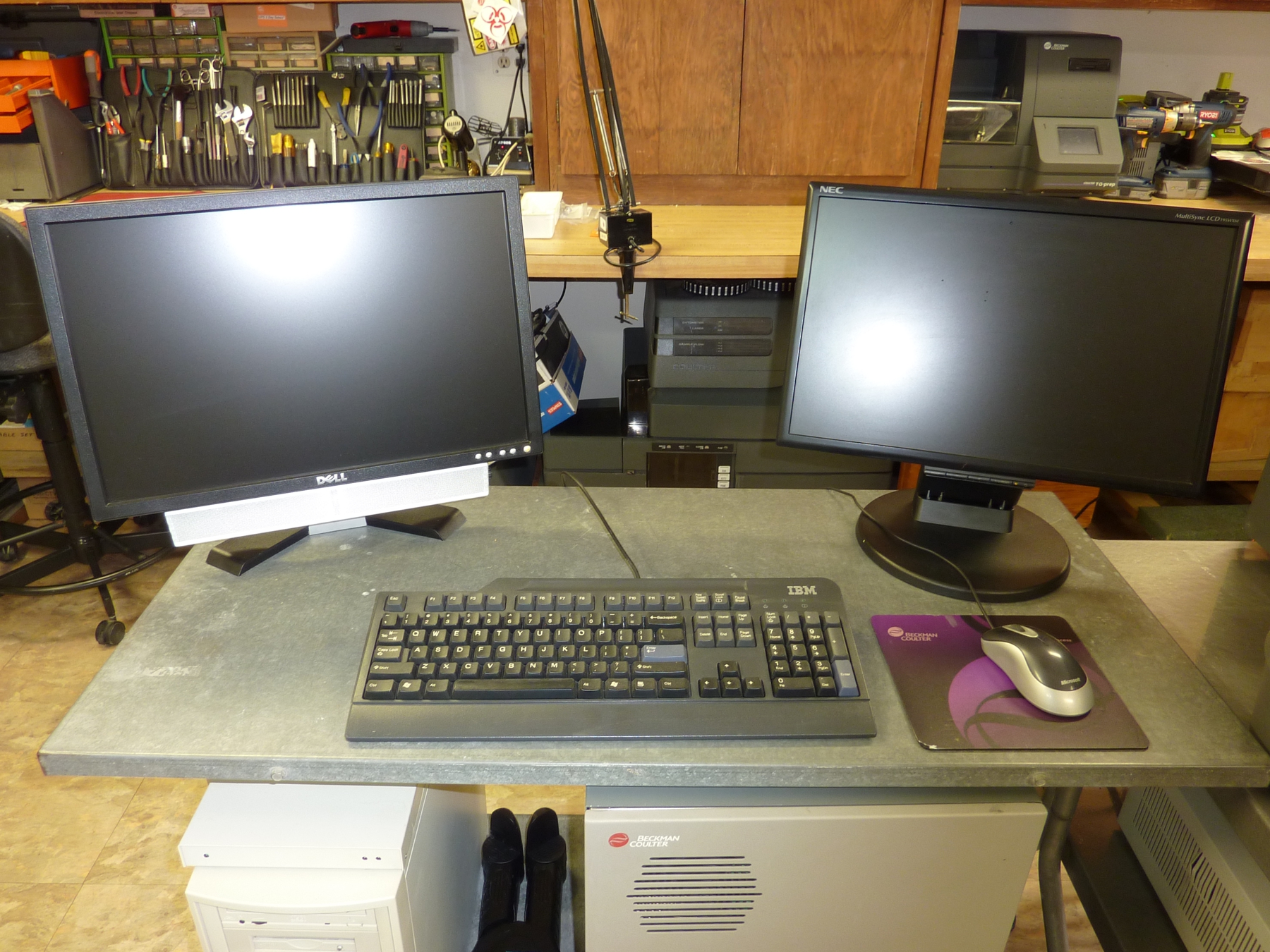

| Workstation: PC with CXP software, two 19" flat screen displays and color ink-jet printer. CXP software can create custom panel reports and perform multiple tube panel based analysis. |
Multi-Carousel Loader (MCL): Enables users to acquire samples using 12 x 75 tubes with 32-tube racks. |
| Laser: 20mW Argon laser operating at 488nm. Collinear beams eliminate the need for time delay adjustments but increases requirement for compensation which is minimized with ADC technology. |
| ADC Compensation: Provides superior correction of spectral overlap. Biological samples can be used for automated color compensation, without the limitations of latex beads. |
| Digital Signal Processing (DSP): For excellent linearity, drift-free amplification and color compensation |
| Particle size range: 0.5µm to 40µm diameter |
| Fluorescence Sensitivity: <600 MESF for FITC and APC, < 300 MESF for PE |
| Maximum acquisition rate: 3,300 events/sec |
| Signal amplification: Linear and log amplification with 4 decade log transformation, pulse width, ratio, peak height and peak area for each parameter plus time. |
| User Changeable Filters: FL1 = 525 BP, FL2 = 575 BP, FL3 = 620 SP, FL4 = 675 BP,
FL5 = 755 BP |
| Minimum Sample Volume: 250 µL |
| Power: 115 VAC, 50/60 Hz. @ 20 amps |
| FC 500 MPL dimensions/weight: 24" h x 38.5" w x 35" d /187 lbs. |
| Manufacture date: 2004 |
| |
|

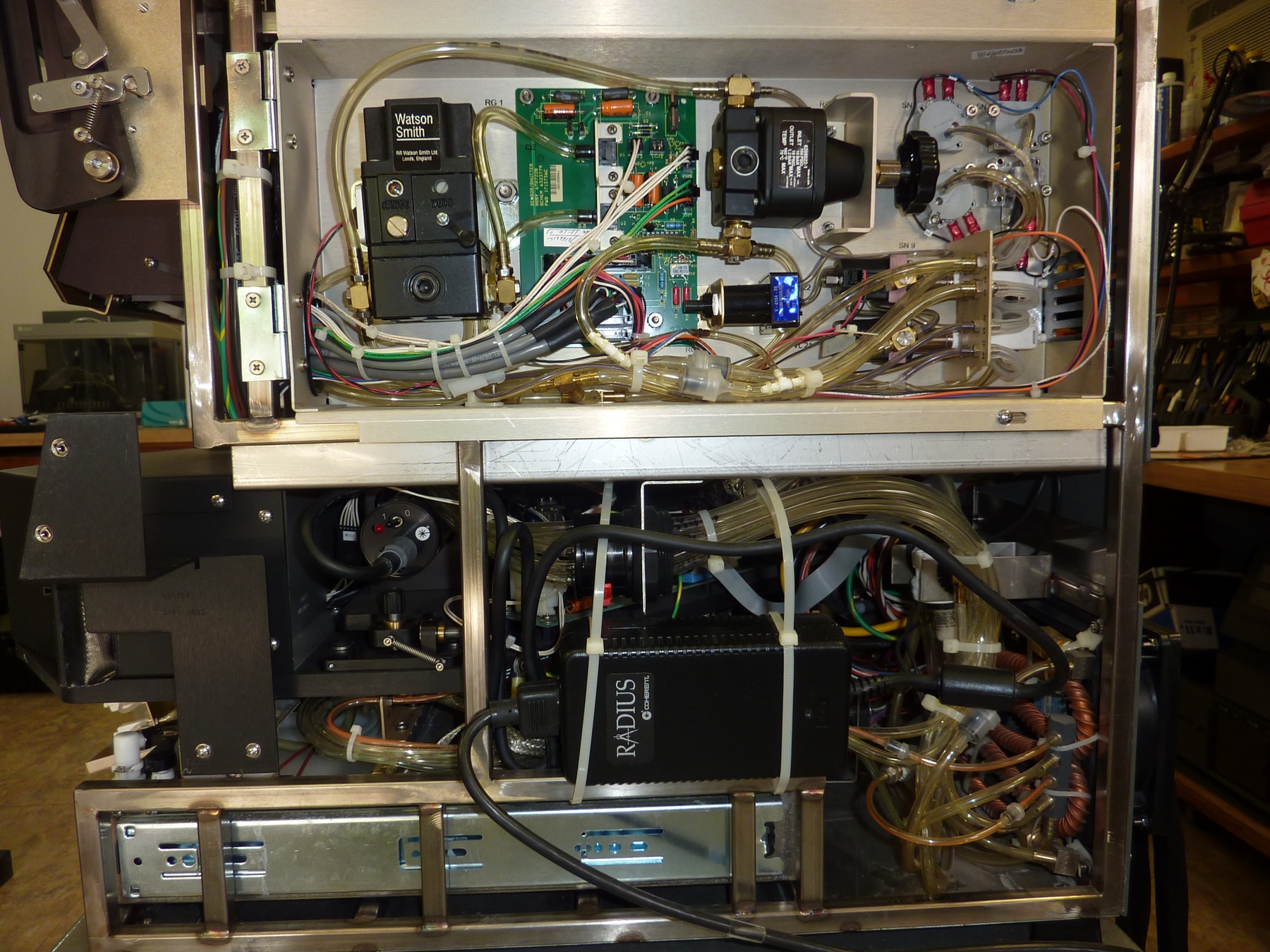

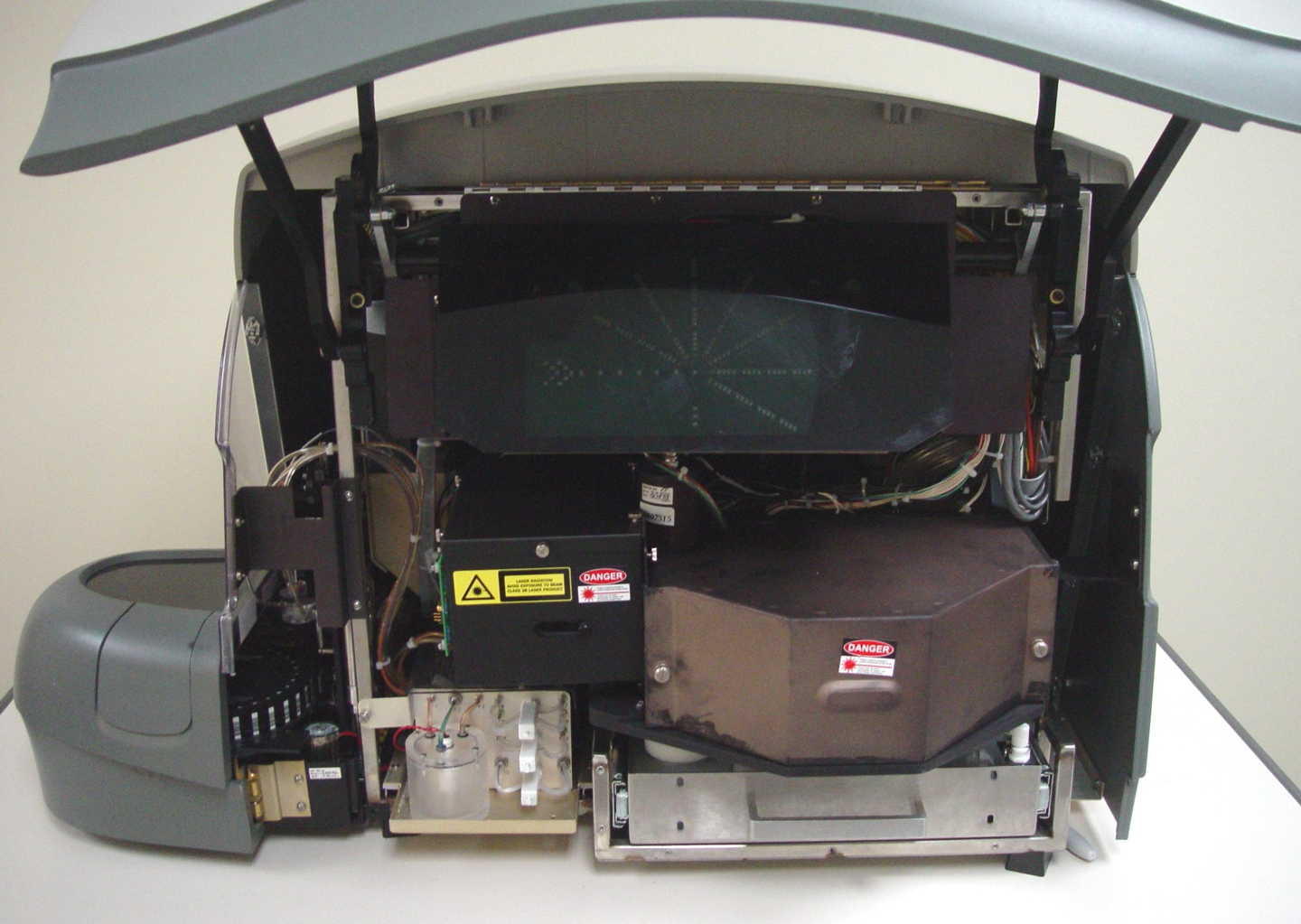

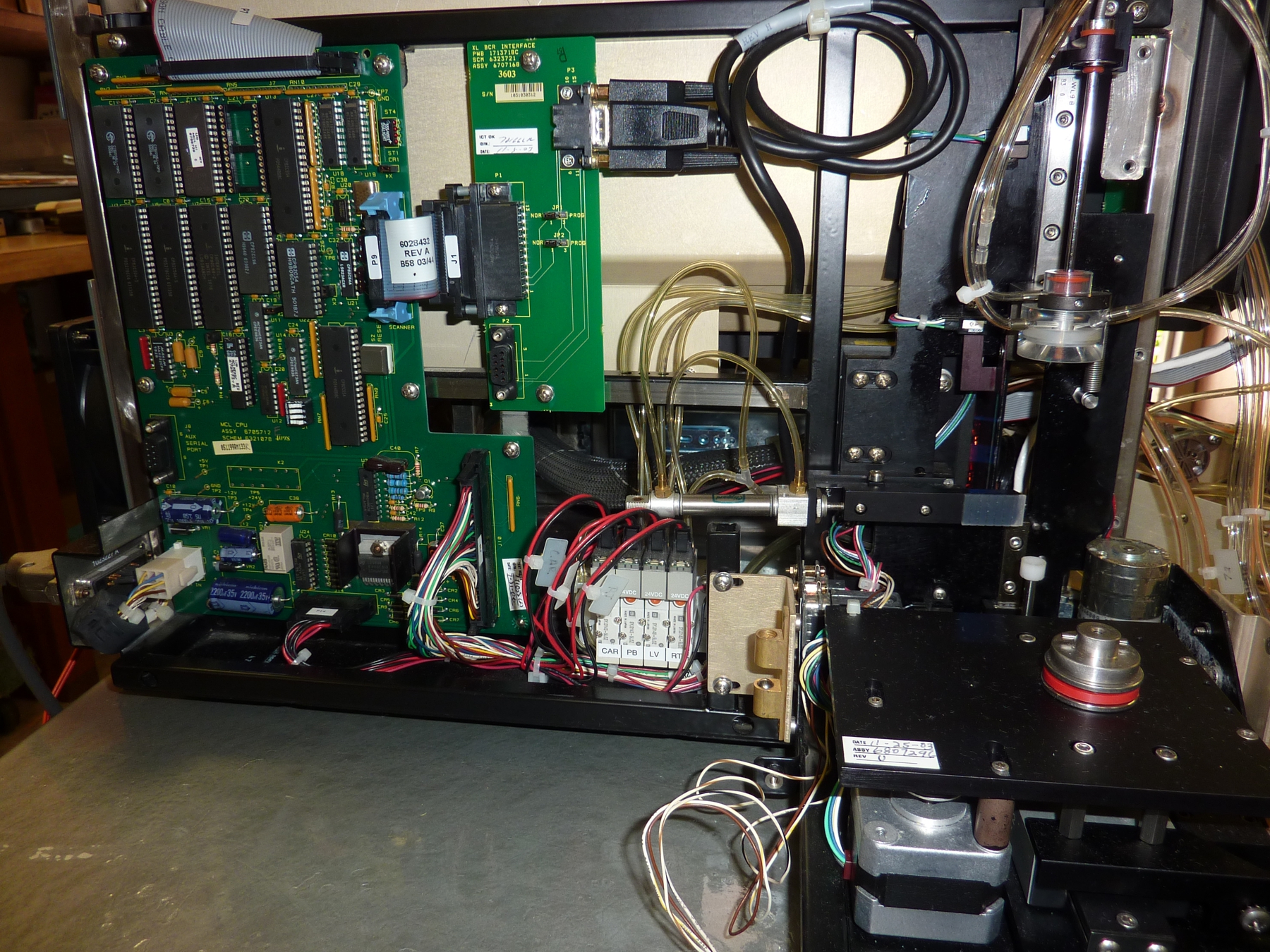

This analyzer is currently being refurbished by CytoMend. Peak operation of the laser and detectors willl be confirmed. A complete report, including printouts of 5-color histograms with instrument settings, will be provided to document performance within factory specifications. The FC-500 will have the performance and operation of a like-new analyzer prior to shipment. |
| |
|
| Installation by a qualified service representative quoted separately. The price will include all travel expenses and labor required to confirm proper operation at the customer's facility utilizing standard calibration procedures. Any additional time required to correct malfunctions shall be included in the quoted installation fee. |
| |
|
| Instrument and/or applications training by a qualified representative are available for an additional fee. The quoted price includes travel and perdiem expenses when training is performed during an installation visit. Otherwise additional reimbursement for travel and perdiem expenses may be required. |
| |
|
| Custom warranty or service contracts can be quoted separately. All components are covered unless failure is due to operator negligence. In addition, we offer unlimited telephone support for all of the products sold through Spectron Corporation regardless of warranty. |
| |
|
| Shipping costs will be quoted separately. If the purchaser becomes the shipping agent for one of the products located in the State of Washington they could be subject to paying Washington State sales tax unless exempt. No such obligation exists if Spectron Corporation is the designated shipper to destinations outside the State of Washington. This equipment shall be packed in a sturdy double-walled box surrounded inside by 2" foam sheets on all sides. All components shall be individually protected within the same container. The box will be taped, strapped and attached to a pallet with additional strapping. Shipping will be arranged through a qualified airfreight carrier with full insurance. |
| |
|
| Most established institutions will be approved for net-30 terms or other payment plans. Leasing or rental programs may also be available for qualified buyers with various options for an eventual purchase. Washington State customers or others arranging shipment or picking up products themselves may be subject to Washington State sales tax unless exempt. Spectron Corporation will inform prospective buyers of any such circumstance that could result in a tax liability. Otherwise, buyers would only be subject to applicable use taxes that they might be required to pay directly to their respective state. |
| |
|
| Spectron Corporation would appreciate the opportunity to bid on a service contract covering our products as well as other flow cytometers located at your facility. Please inquire into any modifications to the listed products that would better suit your requirements. We strive for complete satisfaction. |
| |
